5 Gallon Internal Tank Sprayer

SKU: 9250067

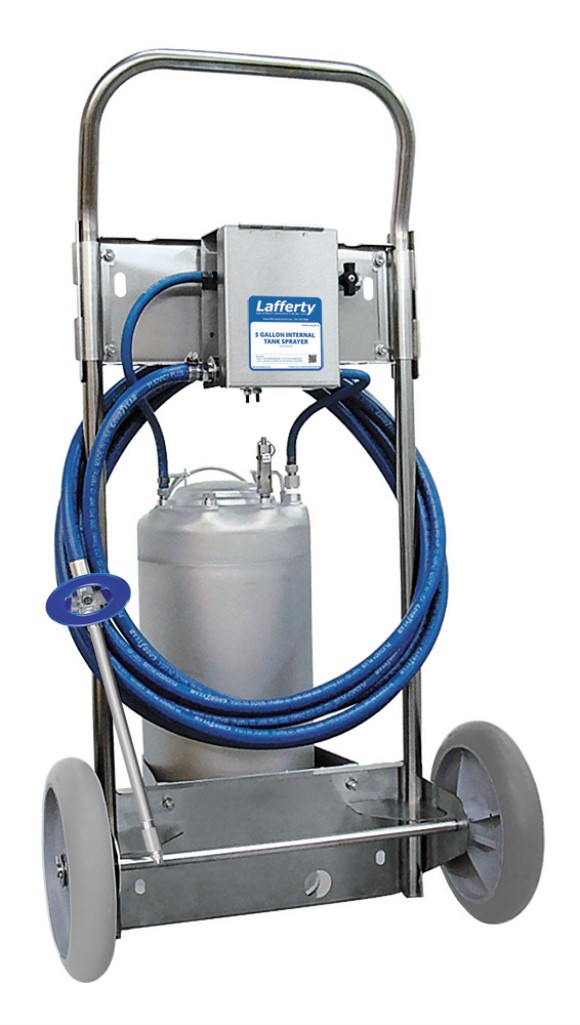

5 Gallon Internal Tank Sprayer


The 5 Gallon Internal Tank Sprayer is a chemical spray applicator with an all stainless steel cart assembly for applying ready-to-use chemical solutions to a variety of surfaces. Connect compressed air to pressurize the 316L stainless steel ASME rated tank and project the solution through the hose, wand and fan pattern spray nozzle. Includes 2 spray nozzles which provide either 7 or 15 minutes of spraying time depending on the nozzle used.

Key Features:

- 316L stainless steel, ASME rated tank
- Draws pre-diluted chemical from the 5 gallon tank
- Alternate nozzles to project a low or medium volume fan pattern spray
- Sprays for 7 or 15 minutes per tank fill
- Powered solely by compressed air
- All stainless steel wetted components ensure durability and years of outstanding performance


- All stainless steel 2-wheel cart with non-marking tires
- Stainless steel, hinged mounting enclosure
- 5 gallon, 316L stainless steel, ASME rated pressure tank
- Stainless steel pressure relief pop-off valve
- 25' discharge hose, stainless steel ball valve, stainless steel wand & 2 fan nozzles


- Ready-to-Use Chemical Solution
- Compressed Air up to 3 CFM
- Minimum Air Supply Line 3/8"

5 Gallon Tank Sprayer Instructions
