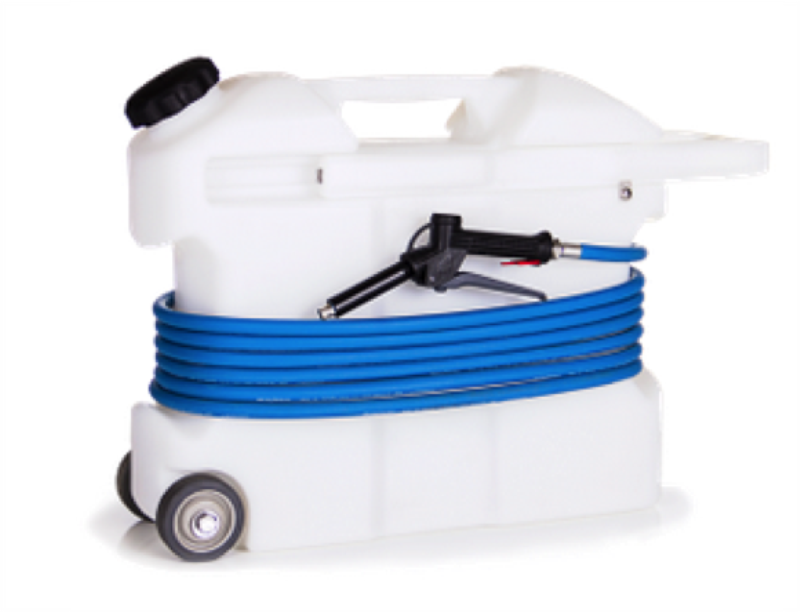

Spray On 5

SKU: 9281793
Spray On 5


Spray On 5 Features:

  • Draws from pre-mixed solution
  • Powered by compressed air
  • Hinged back plate provides tool-free access to components
  • Quick-change pump
  • Natural color tank for easy visibility of product levels
  • Integrated hose wraps
  • In-line strainer to protect pump from debris
  • Pull out handle for portability


  • Power Type: Compressed Air
  • Chemical Pickup Type: Draws from pre-mixed solution
  • Suction Line Lenght/ Diameter: 3/8 in. inside diameter
  • Capacity: 5 gallons
  • Discharge Hose Diameter: 30 ft. with 3/8 in. inside diameter
  • Output Distance: 10-12 ft.
  • Output Volume: 2 gallon/min.
  • Flow Rate: 2 gallon/ minute
  • Wheel Type: Two 3 inch non-marking wheels
  • Pump Seals: Santoprene, Viton, or Kalrez

Pump Seals to choose from:

  • Santoprene: standard
  • Viton: upgrade against more aggressive chemicals
  • Kalrez: the most robust against chemical attack and has the longest pump life

List of fluids/compounds that are allowed for each type of pump:

  • Santoprene: Potable water, acids, alkalines, soap, alcohols and ketones.
  • Viton: Oils, solvents, D-Limonene, aromatic & halogen hydrocarbons, acids.
  • Kalrez: Lubricating oils, hydraulic oils, vegetable oils, alcohols, ketones, aromatic hydrocarbons, diluted acids, alkalis, soaps with solvents, automotive brake fluid, acetones, ethonal, inks.
