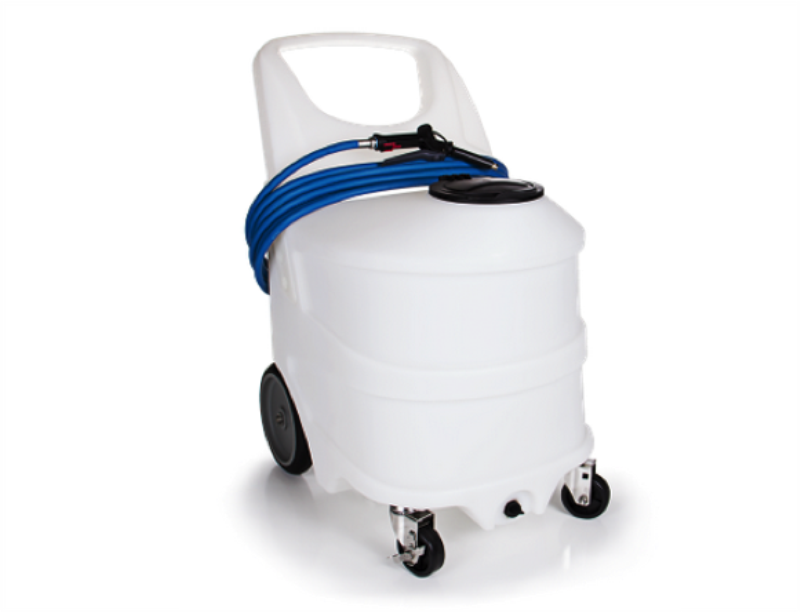

Spray On 30
SKU: 9281791***FREE SHIPPING WITHIN THE CONTIGUOUS US***
SPRAY- ON 30 FEATURES:
- Draws from pre-mixed solution
- Powered by compressed air
- Hinged back plate provides tool-free access to components
- Quick-change pump
- Natural color tank for easy visibility of product levels
- Integrated hose wraps
- Front-facing drain
- In-line strainer to protect pump from debris
SPECIFICATIONS:
- Power Type: Compressed Air
- Chemical Pickup Type: Draws from pre-mixed solution
- Number of Products Unit Draws From: One
- Suction Line Lenght/ Diameter: 3/8 in. inside diameter
- Capacity: 30 gallons
- Discharge Hose Diameter: 30 ft. with 3/8 in. inside diameter
- Output Distance: 10-12 ft.
- Output Volume: 2 gallon/min.
- Flow Rate: 2 gallon/ minute
- Wheel Type: Two 10 inch non-marking wheels
- Pump Seals: Santoprene, Viton, or Kalrez
Pump Seals to choose from:
Santoprene: standard
Viton: upgrade against more aggressive chemicals
Kalrez: the most robust against chemical attack and has the longest pump life
List of fluids/compounds that are allowed for each type of pump:
Santoprene: Potable water, acids, alkalines, soap, alcohols and ketones.
Viton: Oils, solvents, D-Limonene, aromatic & halogen hydrocarbons, acids.
Kalrez: Lubricating oils, hydraulic oils, vegetable oils, alcohols, ketones, aromatic hydrocarbons, diluted acids, alkalis, soaps with solvents, automotive brake fluid, acetones, ethonal, inks.
Requirements:
Compressed air requirements: 40 - 80 psi with 2 cfm
Liquid temperature range: 40-100˚
