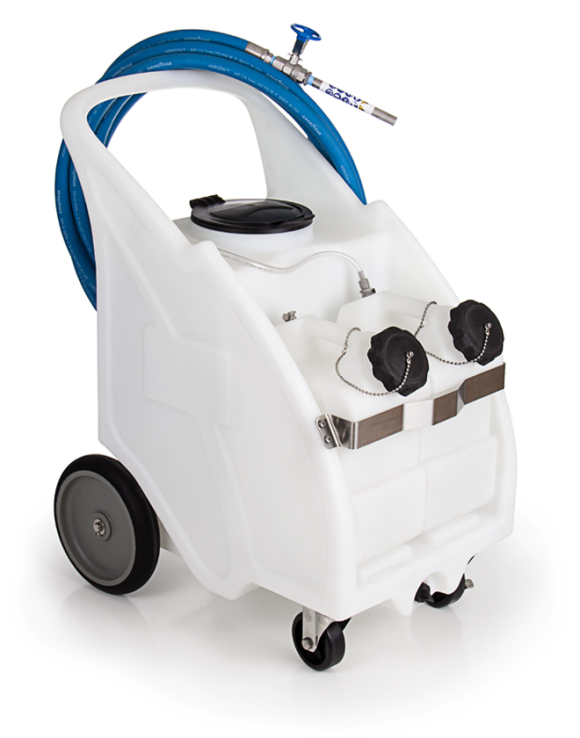

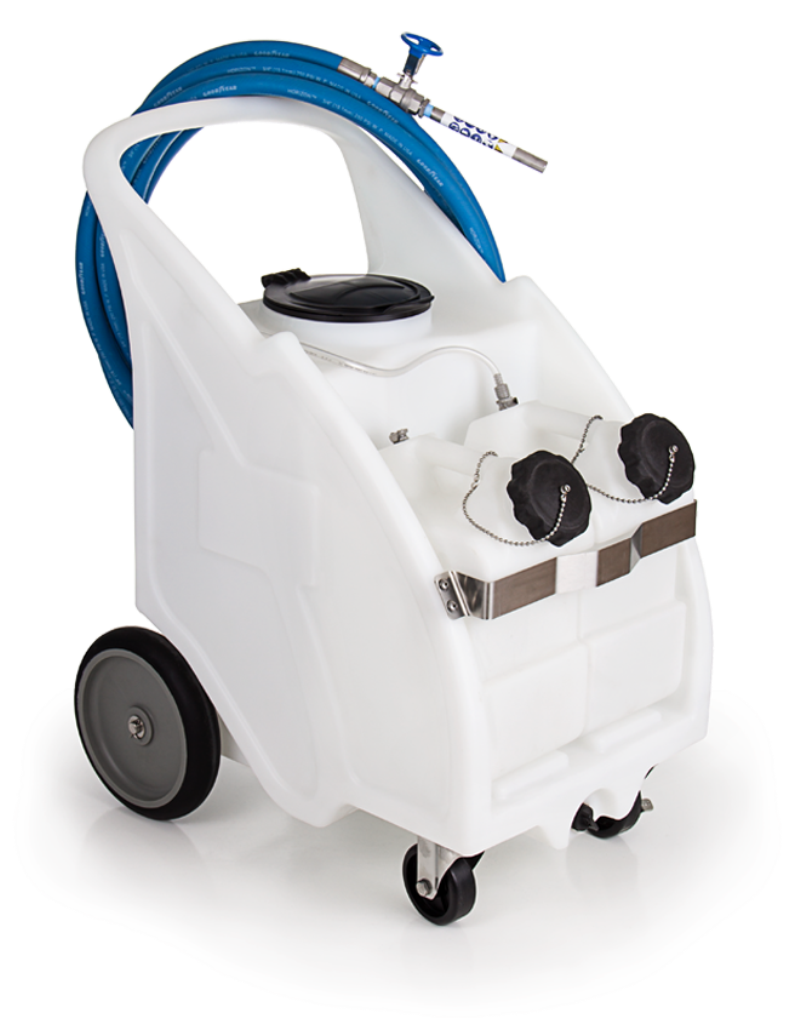

15 Gallon Concentrate Foam Unit

***FREE SHIPPING WITHIN THE CONTIGUOUS US***

- Draws from concentrated product
- Powered by compressed air
- Dilutes at ratios of 14:1 to 320:1
- Holds two FILL-iT chemical jugs or one standard 5 gallon bucket (chemical jugs/bucket not included)
- Onboard water tank – 15 gallon (56.8 liter) capacity
- Hinged back plate provides tool-free access to components
- Quick-change pump
- Hinged lid
- Color coding options:
- Lid – 7 colors (BK, BL, GN, YL, RD, PL, OR)
- Discharge hose – 4 colors (BL, GN, YL, RD)
- Anti-kink hose protection
- Natural color tank for easy visibility of water levels
- Integrated hose wraps
- Front-facing drain
- In-line strainer to protect pump from debris

Requirements:

COMPRESSED AIR: 40-80 psi (3-5 bar) with 5-10 cfm (141-283 l/min)
LIQUID TEMPERATURE RANGE: 40-100˚F (4.4-37˚C)
CHEMICAL COMPATIBILITY: Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.

Specifications:

POWER TYPE: Compressed air
CHEMICAL PICKUP TYPE: Draws from concentrated product
DILUTION RATIO RANGE*: 14:1 to 320:1
NUMBER OF PRODUCTS UNIT CAN DRAW FROM (AND WHETHER IT DRAWS SIMULTANEOUSLY OR ONE AT A TIME): One product
SUCTION LINE LENGTH/DIAMETER: 8 ft. (2.4 m) clear hose with 1/4 in. (6.4 mm) inside diameter
CAPACITY: 15 gallons (56.78 liters) of water; Up to 10 gallons (37.85 liters) of concentrate
DISCHARGE HOSE DIAMETER/LENGTH: 30 ft. (9 m) hose, with 3/4 in. (19 mm) inside diameter
DISCHARGE WAND/TIP TYPE: 7 in. (17.8 cm) stainless steel wand with zero tip and ball valve
OUTPUT DISTANCE: 25-30 ft. (7-9 m)
OUTPUT VOLUME: 20-45 gal/min (75-170 l/min) of foam
FLOW RATE*: 2 gal/min (7.6 l/min)
PUMP SEALS: Santoprene, Viton, or Kalrez
WHEEL TYPE: Two 10 inch non-marking wheels
Two 5 inch casters with lock
*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
