1035 Sanitizer Complete

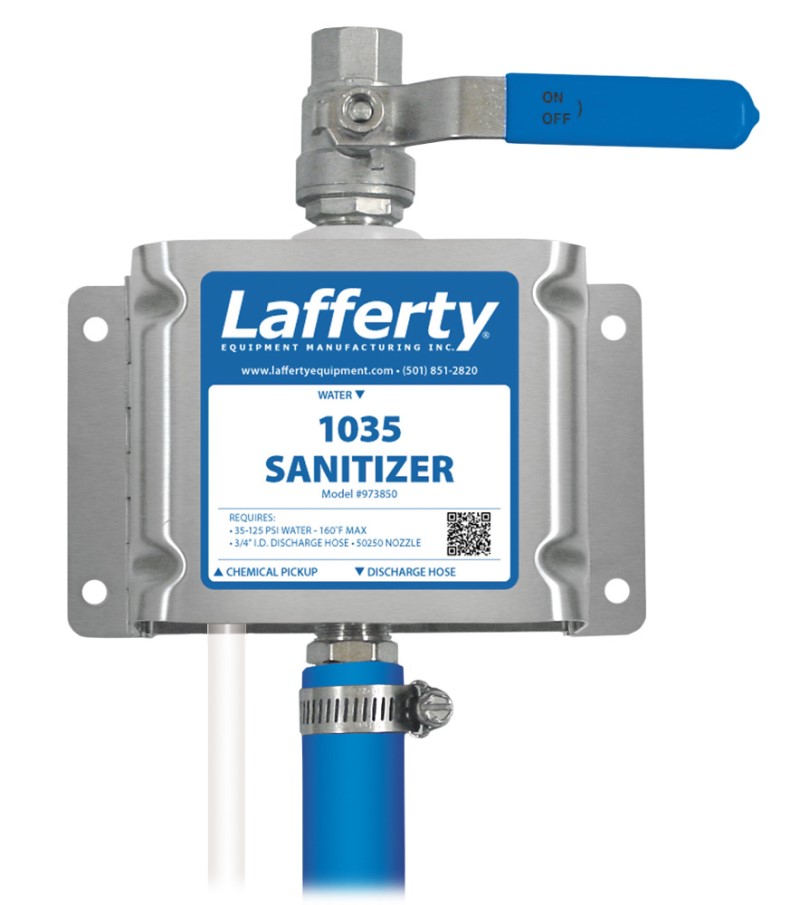

The 1035 Sanitizer is a high volume venturi injection system that uses standard city water pressure (35 - 125 PSI) to draw and blend chemical concentrate into the water stream. Precision metering tips are used to create the lean ratios required for no-rinse sanitizing in food plants. The solution is projected through the discharge hose and fan nozzle as a 9.4 GPM flooding spray, for very fast and efficient coverage.

Key Features:

- Creates a high volume, flooding spray
- Dilutes concentrated sanitizers to the lean ratios required for no-rinse applications in food plants
- Projects a high volume flooding spray in a fan pattern for complete coverage
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments


- Stainless steel mounting bracket
- Stainless steel inlet and discharge ball valves
- Machined polypropylene injector body
- 20 color-coded precision metering tips to set dilution ratios

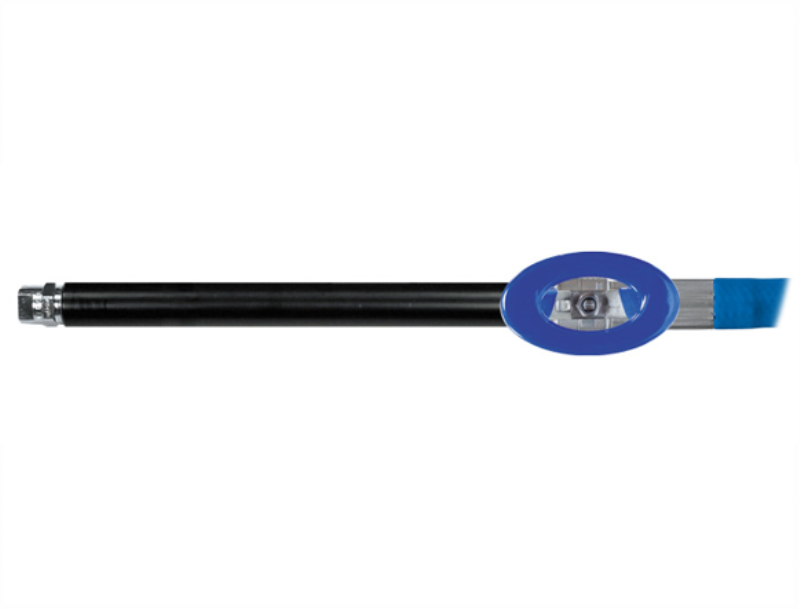

- 50' discharge hose, polypropylene wand and stainless steel fan nozzle


- Water:
          - Temperature up to 160°F
          - Pressure 35 to 125 PSI
          - Flow 9.40 GPM @ 40 PSI
          - Supply Line 3/4"

- Dilution Ratio Range 2,149:1 to 15:1 @ 40 PSI

1035 Sanitizer Instructions
