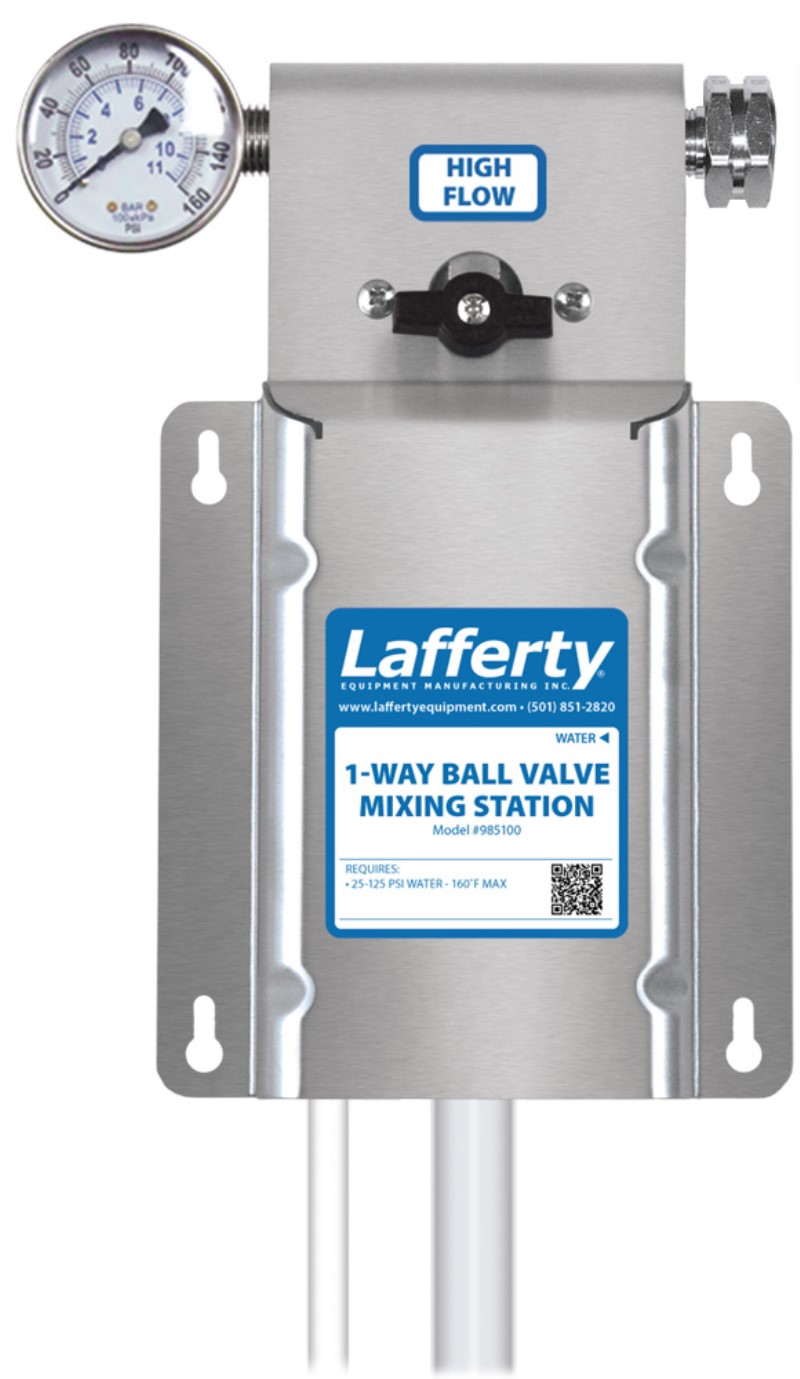

1-Way Ball Valve Mixing Station

SKU: 9250056
1-Way Ball Valve Mixing Station


The 1-Way Ball Valve Mixing Station is a chemical proportioner for accurately diluting a chemical concentrate to the required ratio and for filling any sized container with diluted, ready-to-use chemical solution. This venturi injection system uses city water pressure (25 - 125 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. Ball valve activation allows for hands-free dispensing. Available with several flow rates to dispense into any sized container or equipment.

Key Features:

- Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
- Ball valve activation allows for hands-free dispensing
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- Water pressure gauge eliminates guessing, reduces set-up time and helps with troubleshooting
- Dilution ratio controlled with precision metering tips
- Draws chemical concentrate from any sized container
- Choice of left or right side water inlet
- Mixing stations can be plumbed in series
- Choice of flow rates for filling small to large containers


- Stainless steel mounting bracket
- Activation ball valve
- Polypropylene injector body
- Integrated brass back-flow preventer
- Easy-to-read water pressure gauge for accurate tip selection
- 20 color-coded metering tips for setting dilution ratios


- Water:
          - Temperature up to 160°F
          - Pressure 25-125 PSI
          - Supply Line 1/2" Minimum

- Flow:
           - High Flow (Black Injector) 4.0 - 7.3 GPM
           - Low Flow (White Injector) 1.9 - 3.4 GPM
           - Bottle Fill (Blue Injector) 0.6 - 1.0 GPM

- Dilution Ratio Range @ 40 PSI:
           - High Flow 1,031:1 to 4.8:1
           - Low Flow 480:1 to 3.5:1
           - Bottle Fill 142:1 to 1.7:1
