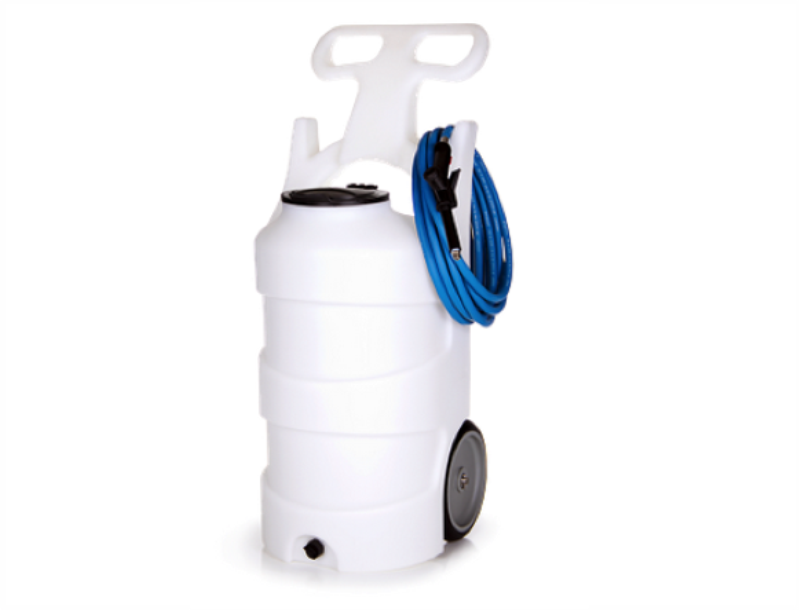

10 Gallon Spray Unit

SKU: 9281781
10 Gallon Spray Unit


Spray On 10 Features:

- Draws from pre-mixed solution
- Powered by compressed air
- Hinged back plate provides tool-free access to components
- Quick-change pump
- Natural color tank for easy visibility of product levels
- Integrated hose wraps
- In-line strainer to protect pump from debris
- Front-facing drain


- Power Type: Compressed Air
- Chemical Pickup Type: Draws from pre-mixed solution
- Suction Line Lenght/ Diameter: 3/8 in. inside diameter
- Capacity: 12.5 gallons
- Discharge Hose Diameter: 30 ft. with 3/8 in. inside diameter
- Output Distance: 10-12 ft.
- Output Volume: 2 gallon/min.
- Flow Rate: 2 gallon/ minute
- Wheel Type: Two 10 inch non-marking wheels
- Pump Seals: Santoprene, Viton, or Kalrez

Pump Seals to choose from:

- Santoprene: standard
- Viton: upgrade against more aggressive chemicals
- Kalrez: the most robust against chemical attack and has the longest pump life

List of fluids/compounds that are allowed for each type of pump:

- Santoprene: Potable water, acids, alkalines, soap, alcohols and ketones.
- Viton: Oils, solvents, D-Limonene, aromatic & halogen hydrocarbons, acids.
- Kalrez: Lubricating oils, hydraulic oils, vegetable oils, alcohols, ketones, aromatic hydrocarbons, diluted acids, alkalis, soaps with solvents, automotive brake fluid, acetones, ethonal, inks.

User Manual
