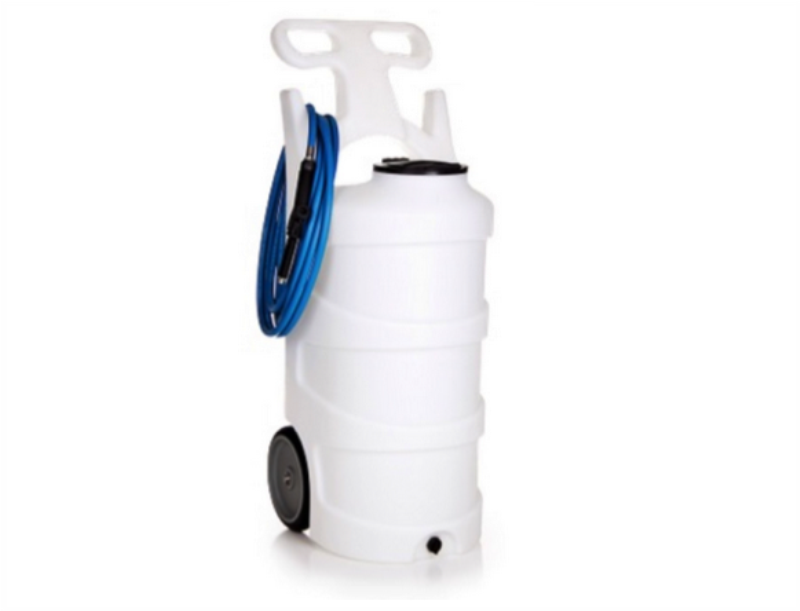

Spray On 20

***FREE SHIPPING WITHIN THE CONTIGUOUS US***

Spray On 20 Features:

• Draws from pre-mixed solution
• Powered by compressed air
• Hinged back plate provides tool-free access to components
• Quick-change pump
• Natural color tank for easy visibility of product levels
• Integrated hose wraps
• In-line strainer to protect pump from debris
• Front-facing drain

Specifications:

• Power Type: Compressed Air
• Chemical Pickup Type: Draws from pre-mixed solution
• Number of Products Unit Draws From: One
• Suction Line Lenght/ Diameter: 3/8 in. inside diameter
• Capacity: 20 gallons
• Discharge Hose Diameter: 30 ft. with 3/8 in. inside diameter
• Output Distance: 10-12 ft.
• Output Volume: 2 gallon/min.
• Flow Rate: 2 gallon/ minute
• Wheel Type: Two 10 inch non-marking wheels
• Pump Seals: Santoprene, Viton, or Kalrez

Pump Seals to choose from:

• Santoprene: standard
• Viton: upgrade against more aggressive chemicals
• Kalrez: the most robust against chemical attack and has the longest pump life

List of fluids/compounds that are allowed for each type of pump:

• Santoprene: Potable water, acids, alkalines, soap, alcohols and ketones.
• Viton: Oils, solvents, D-Limonene, aromatic & halogen hydrocarbons, acids.
• Kalrez: Lubricating oils, hydraulic oils, vegetable oils, alcohols, ketones, aromatic hydrocarbons, diluted acids, alkalis, soaps with solvents, automotive brake fluid, acetones, ethanol, inks.

Requirements:

• Compressed air requirements: 40 - 80 psi with 2 cfm
• Liquid temperature range: 40-100˚F
